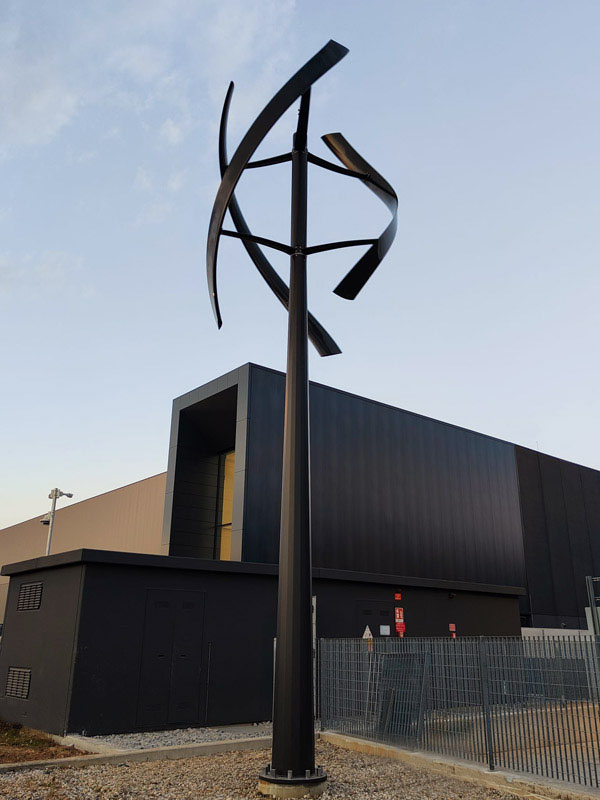

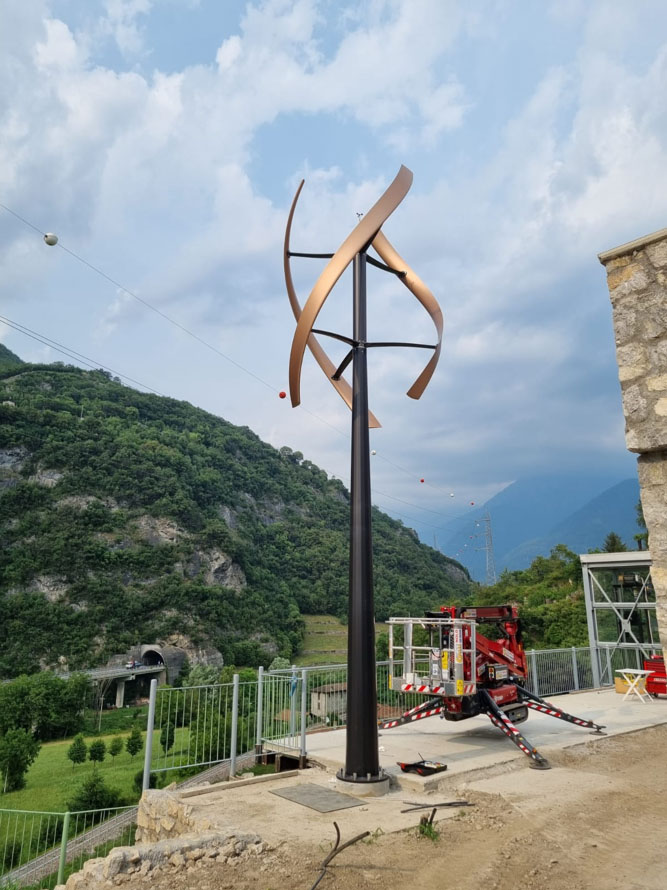

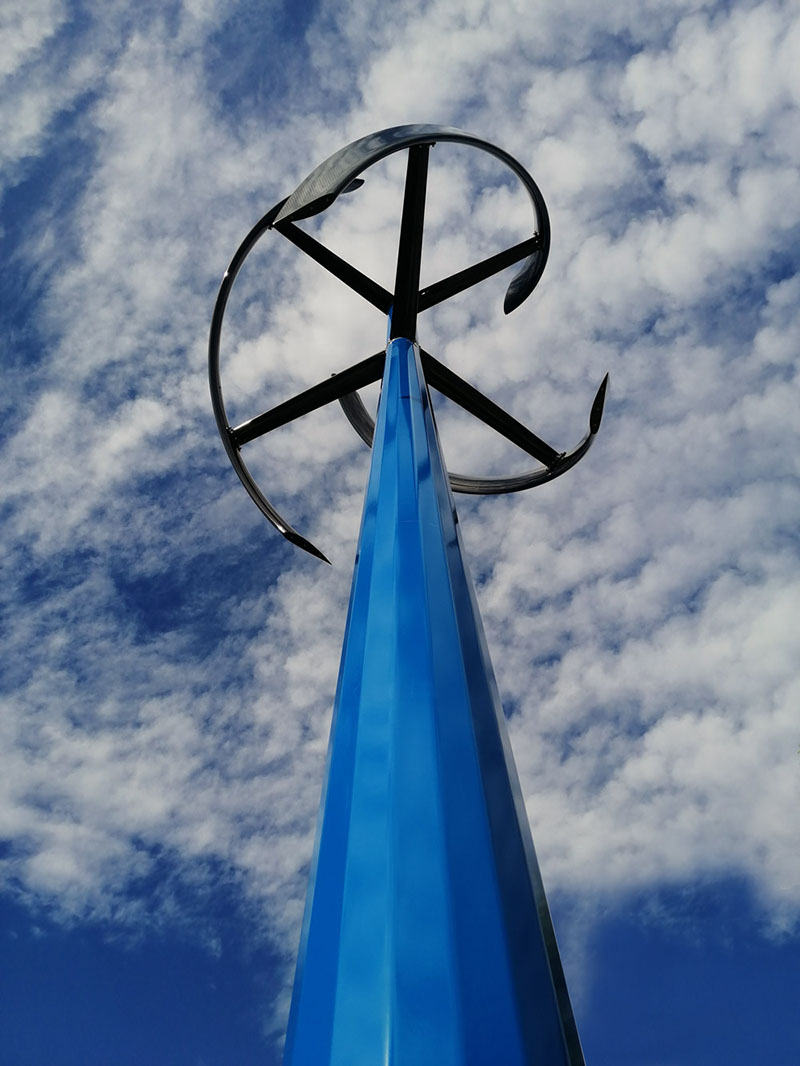

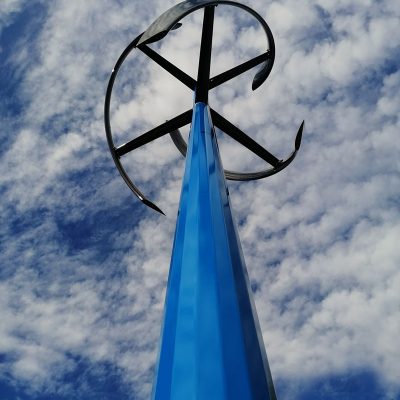

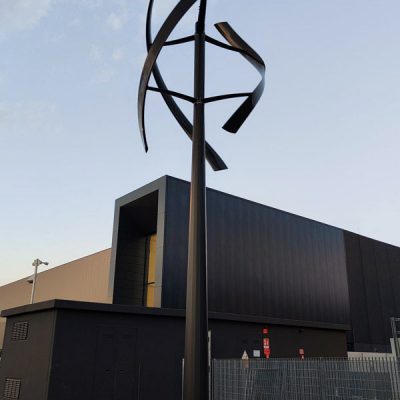

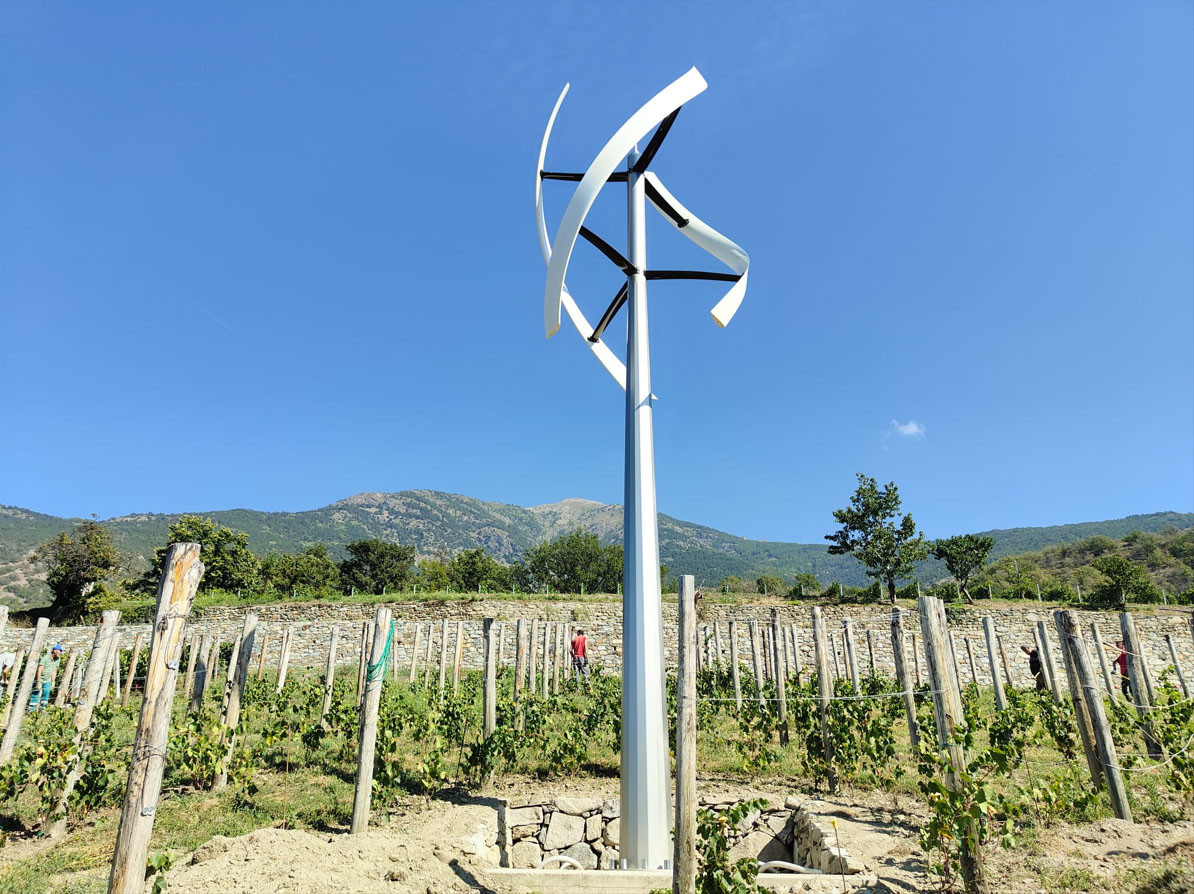

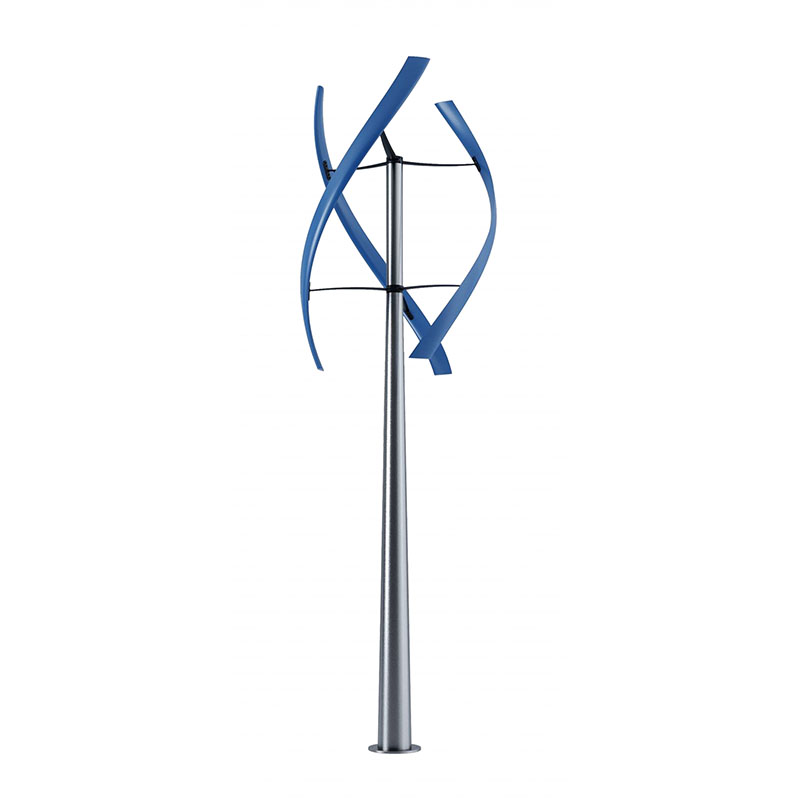

PEGASUS WIND TURBINE
Pegasus Wind Turbine is the customisable product of the ENESSERE collection. With the possibility to choose the color of the sails, this turbine combines sustainability with distinctiveness, offering an elegant solution for those looking for a sophisticated way to embrace a greener future.
€ 69.000,00 + VAT
MORE MODELS

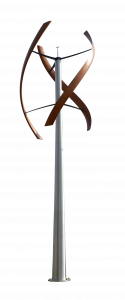

Hercules Natural Wind Turbine

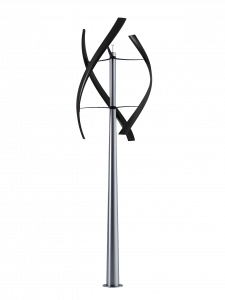

Hercules Tech Wind Turbine
CUSTOMISATION
The Pegasus model stands out for its versatility, thanks to the complete customisation of its elements. This unique feature makes it ideal to use it as a symbol, totem or flag in a wide range of contexts. With its ability to adapt to every situation and every taste, the Pegasus wind turbine is a tailor-made icon for any purpose, channeling its strength and beauty into a variety of unique interpretations.
ICONIC COMBINATIONS
| Wing | Tower | |||
|---|---|---|---|---|

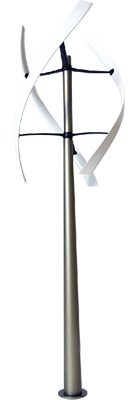

| A3 | SILK |  | TITANIUM |  |

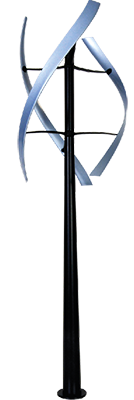

| B1 | SKY |  | GRAPHITE |  |

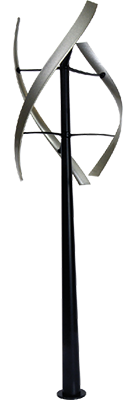

| C1 | METAL |  | GRAPHITE |  |

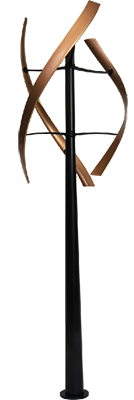

| D1 | COPPER |  | GRAPHITE |  |

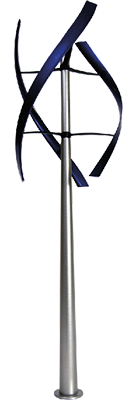

| E2 | SPACE |  | METAL |  |
A3
B1
C1
D1
E2
WINNING COMBINATIONS
| Vela | Torre | |||
|---|---|---|---|---|
| A1 | SILK |  | GRAPHITE |  |
| A2 | SILK |  | METAL |  |
| B2 | SKY |  | METAL |  |
| B3 | SKY |  | TITANIUM |  |
| D2 | COPPER |  | METAL |  |
| E2 | SPACE |  | TITANIUM |  |
| General Information | |
|---|---|
| Axis | Vertical |
| Total Height | 8,85 m |
| Tower Height | 6,00 m |
| RotorWidth | 2,67 m |
| Wing Height | 3,76 m |
| Total Weight | 660 kg |
| Wing Structure Material | Carbon Fiber |
| Wing Covering Material | Varnish |
| Tower Material | Steel S355 N with three layers of varnish |
| Spokes Material | Carbon Fiber |

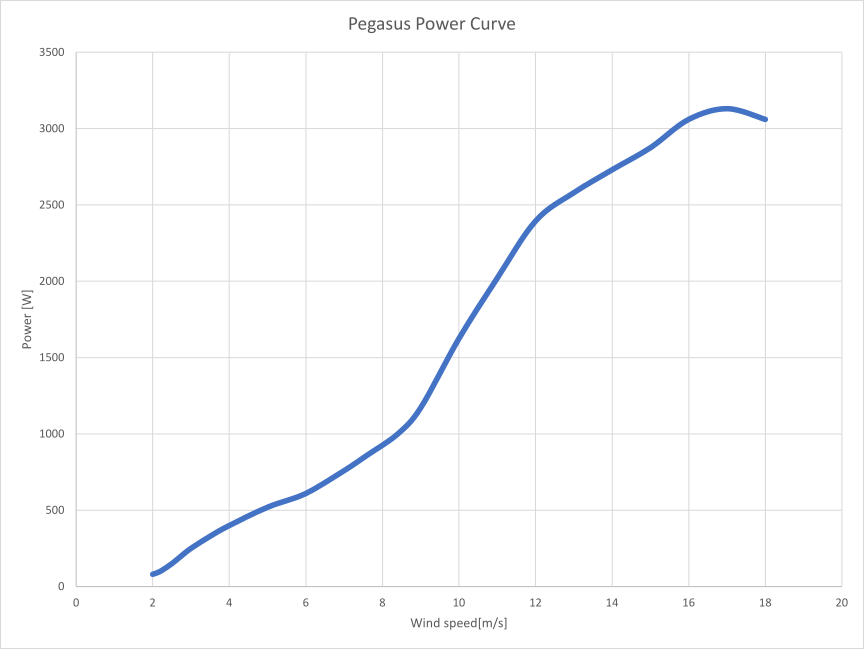

| Max Aerodynamic Power | 4 kW |
| Cut-in Wind Speed | 8 knots (~4,0 m/s) |
| Project Wind Speed | 48 knots (~25,0 m/s) |
| RPM | Max 200 RPM |
| Survival Wind Speed | 76 knots (~39,0 m/s) |
| Annual Energy to 6 m/s | ~5000 kWh |
| Noise Level at 60 m | 38 dBA |
| Type of Generator | Magnetic Three-Phase Permanent, Exterior Rotor |
| Operating temperature | -15°C a 40°C (-5°F a 104°F) |
| Connection Type | Direct Connection |
| Inverter Data | |
| Rated Output Power | 4800 VA |
| Operating Range | from 380 to 780 Vdc |
| AC Nominal Voltage | 400 Vrms (50÷60 Hz) |
| Power Factor on Line | 0,95 |
| Degree of Environmental Protection | IP20 |
| ENESSERE PEGASUS Wind Turbine | Cod NSRP-01 |
|---|---|
| WING STRUCTURE | Carbon Fiber SAILS Customizable colors Anti-UV painting SPOKES in exposed carbon fiber |
| ROTOR | Rotor with custom-made 20-pole alternator Mechanical brake housing with Brembo system Housing of turbine status control sensors |
| TOWER | Steel S335N Triple layer of C5 class paint |
| INVERTER | Cleanverter 15 TL Inverter certified CEI 0-21 Power management software from macro-wind Dimensions 1,7×1,02×0,72 m |
| CONTROL PANEL | Double braking system, mechanical and electromagnetic Programmable Logic Controller (PLC) and Sensors: Spinning sensor Wind sensor Vibration sensor Temperature sensors of the generator, inverter and electrical panel Remote control via app |
| SERVICES | Complete Installation Electrical wiring and commissioning with 3 operators DURATION OF THE INTERVENTION: 02 Working Days for each single wind turbine Remote assistance |
| OPTIONAL | NOT INCLUDED | Base plinth Transport Network connection paperwork |
The wind turbine has obtained the following certifications and complies with the following directives:
- CE marking
- EN 61400-2 “Wind turbines – Part 2: Design requirements for small wind turbines”
- EN 12100-1:2010 “Safety of machinery – General design principles – Risk assessment and risk reduction”
- Community Directive 2014/35/EU on low voltage electrical equipment
- Community Directive 2014/30/EU on electromagnetic compatibility
The electrical panel has the following certifications and complies with the following directives:
- CE marking
- CEI 0-21 “Reference technical rule for the connection of active and passive users to the LV networks of electricity distribution companies”
- EN 61000-2-2 “Electromagnetic compatibility – Part 2: Environment – Section 2: Compatibility levels for low-frequency conducted disturbances and signal transmission on public low voltage supply systems”
- EN 61000-3-11 “Electromagnetic compatibility (EMC) — Part 3: Limits — Section 11: Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage power systems for equipment with rated currents <= 75 A and subject to connection according to IEC 61000-3-11:2000 conditions”
- EN 61000-3-12 “Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for harmonic currents produced by equipment connected to public low-voltage systems with input currents > 16 A and <= 75 A per phase IEC 61000-3-12:2011 IEC 61000-3-12:2011/IS1:2012”
- EN 61000-6-1 “Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity standard for residential, commercial and light-industrial environments”
- EN 61000-6-3 “Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emissions for residential, commercial and light-industrial environments”
- EN 62109-1 “Safety of power converters for use in photovoltaic power systems – Part 1: General requirements”
- EN 62109-2 “Safety of power converters for use in photovoltaic power systems – Part 2: Particular requirements for inverters”
- G59-3
