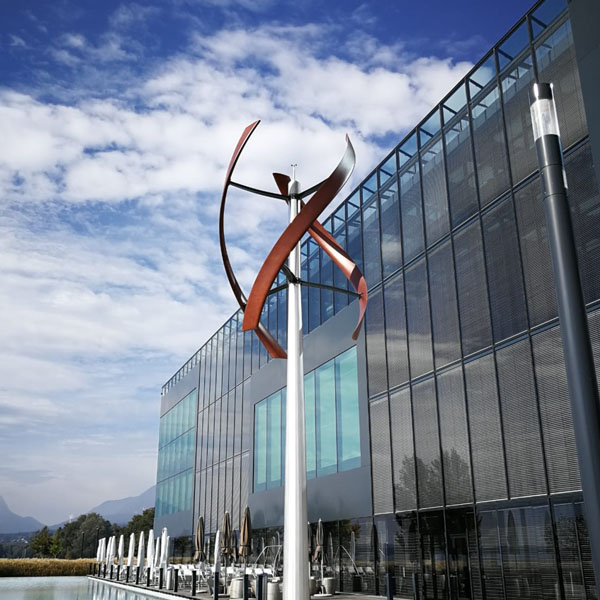

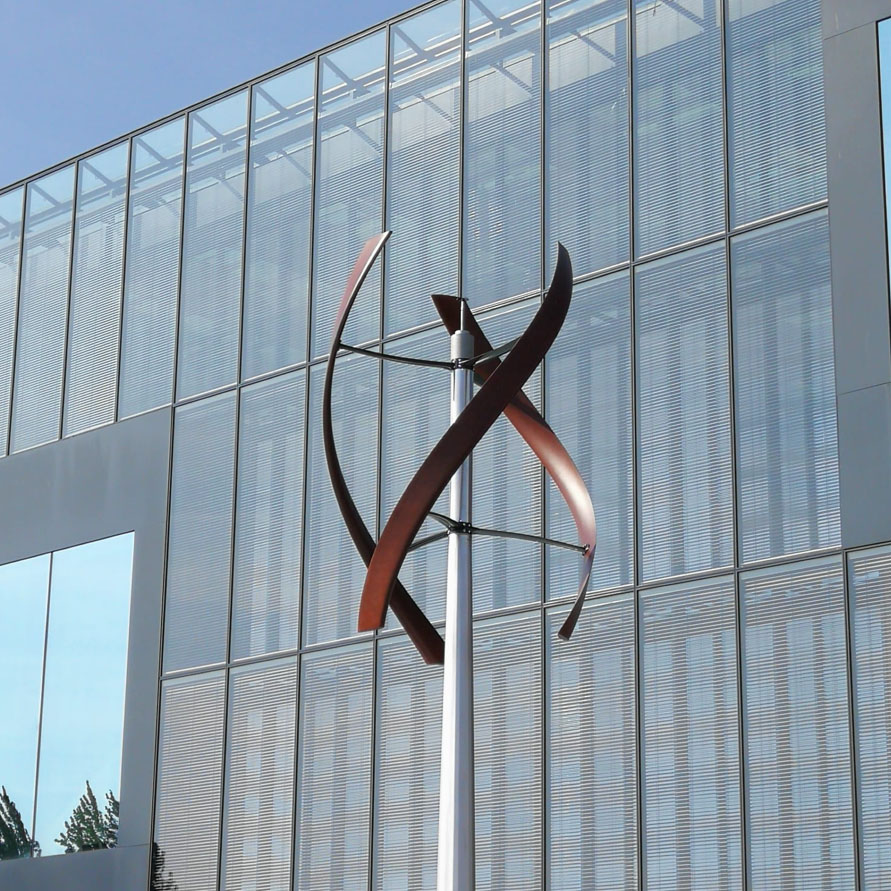

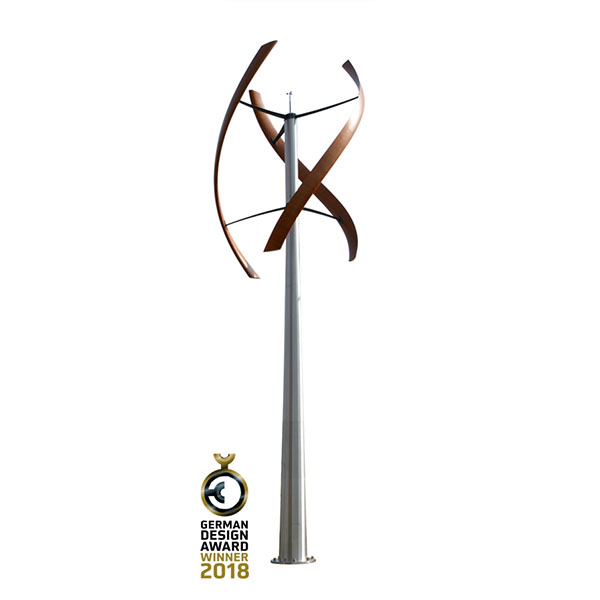

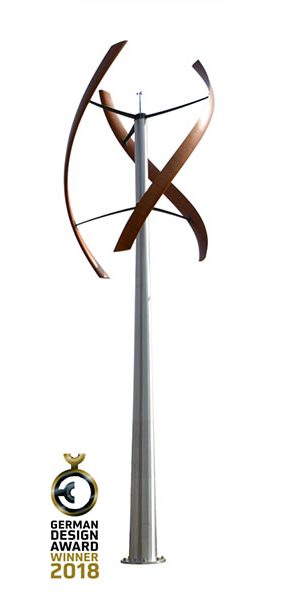

HERCULES NATURAL WIND TURBINE
Hercules Natural Wind Turbine is the flagship of the ENESSERE constellation, a marvel of wind engineering that combines high-quality materials with impeccable design.

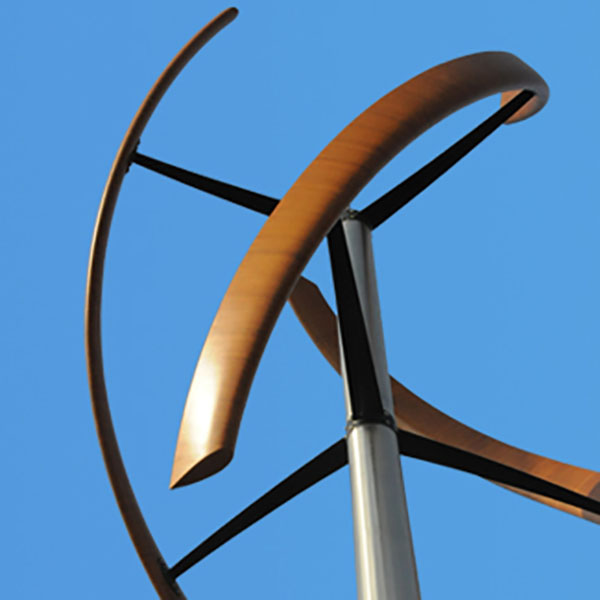

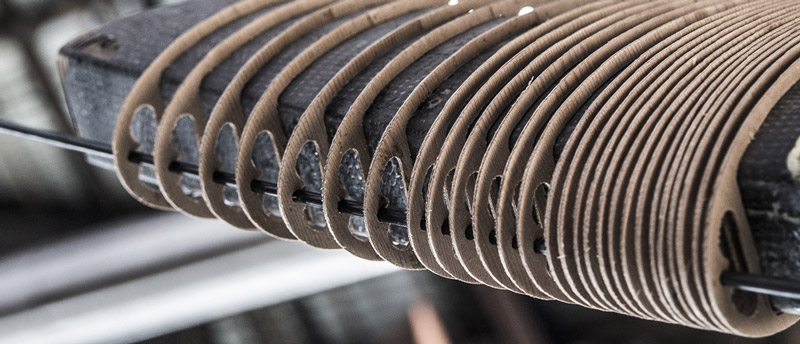

Its sails are covered with 40,000 strips of paulownia wood inserted one by one onto the carbon fibre skeleton by our master craftsmen. This meticulous attention to detail not only creates a lightweight structure, but it also gives it an unparalleled elegance.

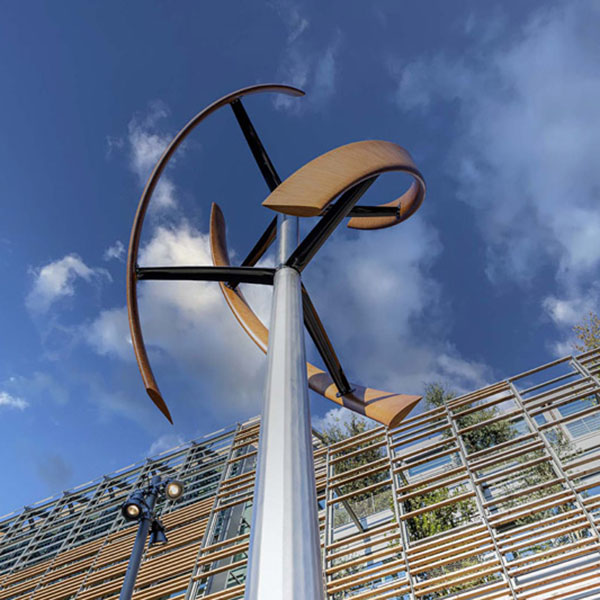

Furthermore, the Hercules Wind Turbine tower is made of stainless steel, ensuring resistance and durability over time even in the most hostile environments.
With Hercules Wind Turbine, aesthetics meets power, resulting in a work of art of wind energy.
€ 96.000,00 + VAT
VARIATIONS
Hercules Tech Wind Turbine
MORE MODELS
Pegasus Wind Turbine
| General Information | |
|---|---|
| Axis | Vertical |
| Total Height | 8,85 m |
| Tower Height | 6,00 m |
| Rotor Width | 2,68 m |
| Wing Height | 3,76 m |
| Total Weight | 690 kg |
| Wing Structure Material | Carbon Fiber |
| Wing Covering Material | Paulownia Wood |
| Tower Material | Stainless Steel 316 |
| Spokes Material | Carbon Fiber |

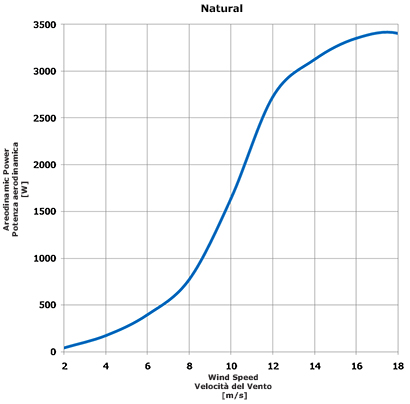

| Max Aerodynamic Power | 4 kW |
| Cut-in Wind Speed | 8 knots (~4,0 m/s) |
| Project Wind Speed | 48 knots (~25,0 m/s) |
| RPM | Max 200 RPM |
| Survival Wind Speed | 76 knots (~39,0 m/s) |
| Annual Energy to 6 m/s | ~5000 kWh |
| Noise Level at 60 m | 38 dBA |
| Type of Generator | Magnetic Three-Phase Permanent, Exterior Rotor |
| Operating temperature | -15°C a 40°C (-5°F a 104°F) |
| Connection Type | Direct Connection |
| Inverter Data | |
| Rated Output Power | 4800 VA |
| Operating Range | from 380 to 780 Vdc |
| AC Nominal Voltage | 400 Vrms (50÷60 Hz) |
| Power Factor on Line | 0,95 |
| Degree of Environmental Protection | IP20 |
| ENESSERE HERCULES NATURAL Wind Turbine | Cod NSRH-01 |
|---|---|
| WING STRUCTURE | carbon fiber SAILS covered with 4,000 strips of Paulownia wood Fiberglass protection SPOKES in exposed carbon fiber |
| ROTOR | Rotor with custom-made 20-pole alternator Mechanical brake housing with Brembo system Housing of turbine status control sensors |
| TOWER | Stainless Steel 316 Electropolishing |
| INVERTER | Cleanverter 15 TL Inverter certified CEI 0-21 Power management software from macro-wind Dimensions 1,7×1,02×0,72 m |
| CONTROL PANEL | Double braking system, mechanical and electromagnetic Programmable Logic Controller (PLC) and Sensors: Spinning sensor Wind sensor Vibration sensor Temperature sensors of the generator, inverter and electrical panel Remote control via app |
| SERVICES | Complete Installation Electrical wiring and commissioning with 3 operators DURATION OF THE INTERVENTION: 02 Working Days for each single wind turbine Remote assistance |
| OPTIONAL | NOT INCLUDED | Base plinth Transport Network connection paperwork |
The wind turbine has obtained the following certifications and complies with the following directives:
- CE marking
- EN 61400-2 “Wind turbines – Part 2: Design requirements for small wind turbines”
- EN 12100-1:2010 “Safety of machinery – General design principles – Risk assessment and risk reduction”
- Community Directive 2014/35/EU on low voltage electrical equipment
- Community Directive 2014/30/EU on electromagnetic compatibility
The electrical panel has the following certifications and complies with the following directives:
- CE marking
- CEI 0-21 “Reference technical rule for the connection of active and passive users to the LV networks of electricity distribution companies”
- EN 61000-2-2 “Electromagnetic compatibility – Part 2: Environment – Section 2: Compatibility levels for low-frequency conducted disturbances and signal transmission on public low voltage supply systems”
- EN 61000-3-11 “Electromagnetic compatibility (EMC) — Part 3: Limits — Section 11: Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage power systems for equipment with rated currents <= 75 A and subject to connection according to IEC 61000-3-11:2000 conditions”
- EN 61000-3-12 “Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for harmonic currents produced by equipment connected to public low-voltage systems with input currents > 16 A and <= 75 A per phase IEC 61000-3-12:2011 IEC 61000-3-12:2011/IS1:2012”
- EN 61000-6-1 “Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity standard for residential, commercial and light-industrial environments”
- EN 61000-6-3 “Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emissions for residential, commercial and light-industrial environments”
- EN 62109-1 “Safety of power converters for use in photovoltaic power systems – Part 1: General requirements”
- EN 62109-2 “Safety of power converters for use in photovoltaic power systems – Part 2: Particular requirements for inverters”
- G59-3

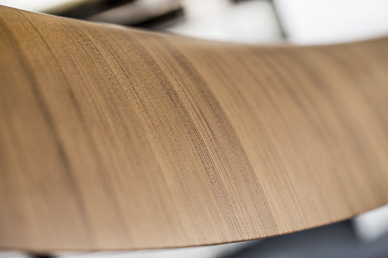

PAULOWNIA
Paulownia wood comes from the Paulownia Tomentosa tree, known for its ecological characteristics: this tree grows in record time and produces 4 times more oxygen than other trees.
The Paulownia Tormentosa has been used for centuries in Japanese cabinetmaking to make cabinets where the most precious objects were kept, such as silk kimonos and often musical instruments. Even today, the load-bearing beams of the roofs of houses in Japan are made of Paulownia, thanks to its characteristics of lightness and ductility.
ACCIAIO INOX
The use of stainless steel for the Hercules Wind turbine tower is a choice that goes beyond corrosion resistance. This high-quality material is virtually immune to rust, ensuring exceptional durability, especially in coastal environments where the salinity of the air could represent a challenge to other metal alloys. In these locations, where wind production is often optimal, stainless steel becomes the ideal partner, ensuring a reliable and long-lasting operation of the ENESSERE wind turbines.
