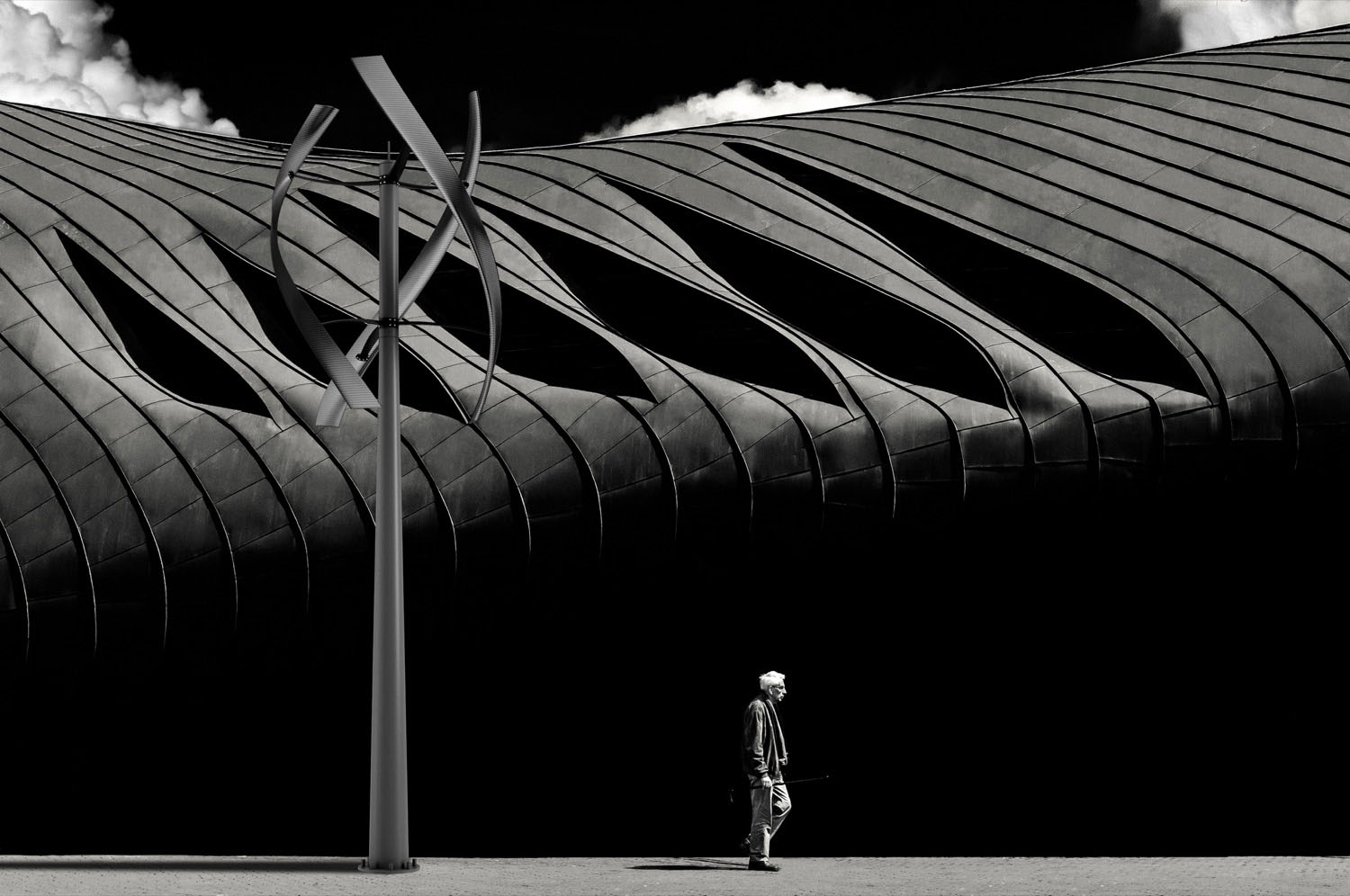

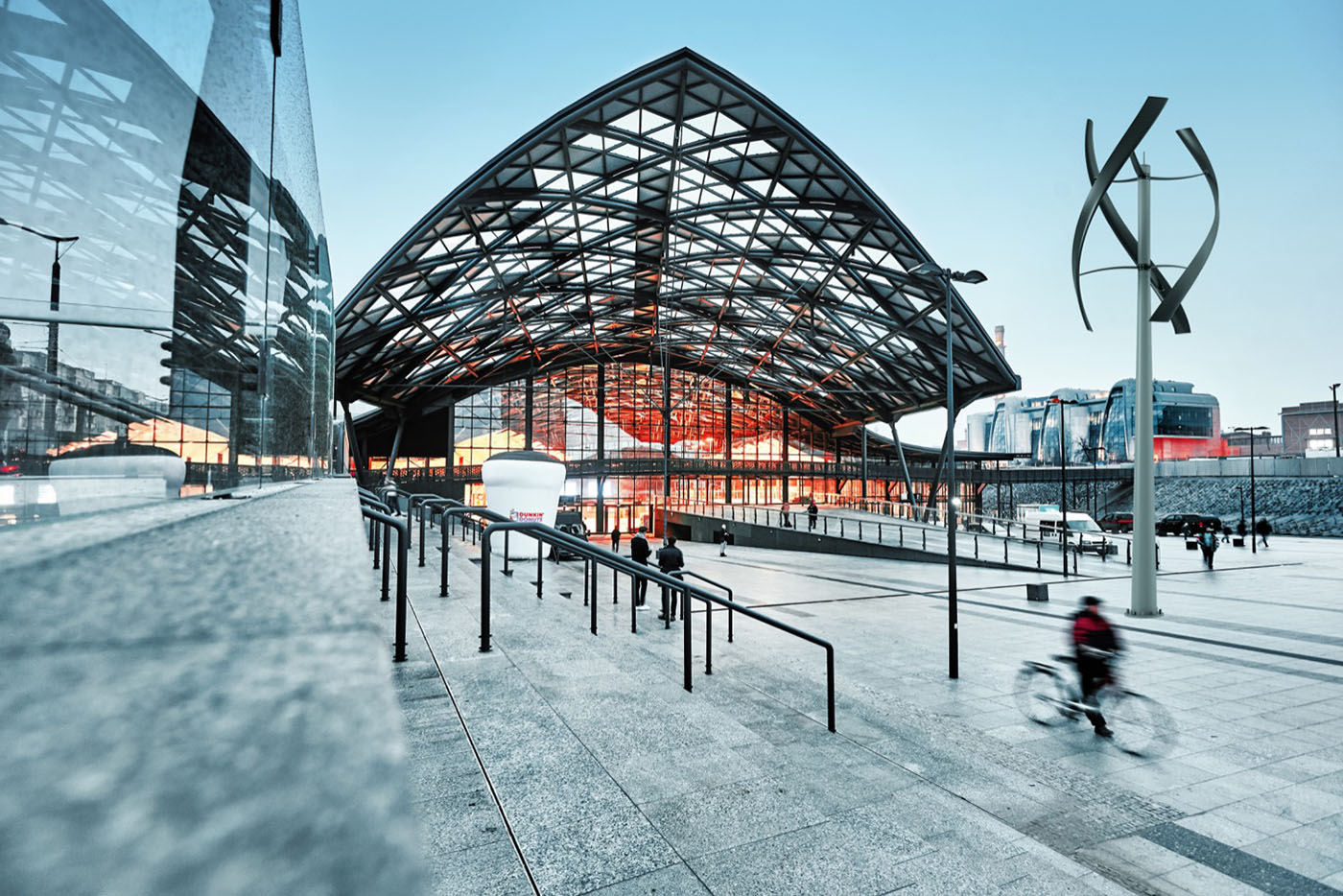

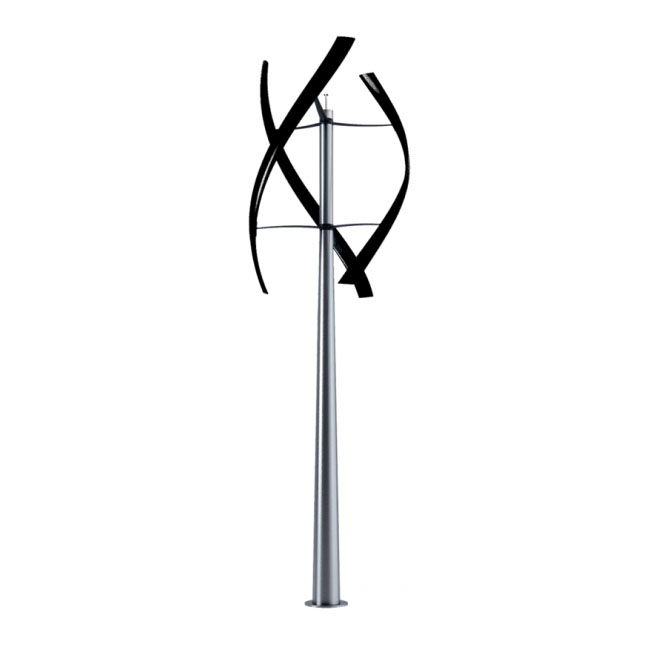

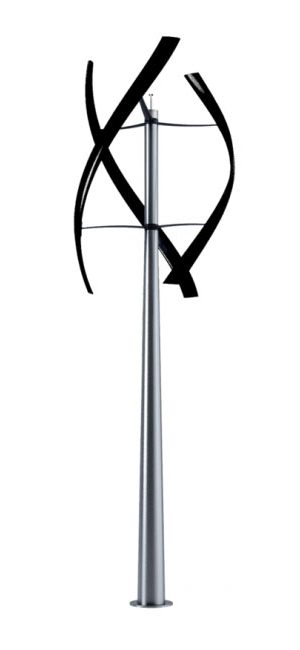

HERCULES TECH WIND TURBINE

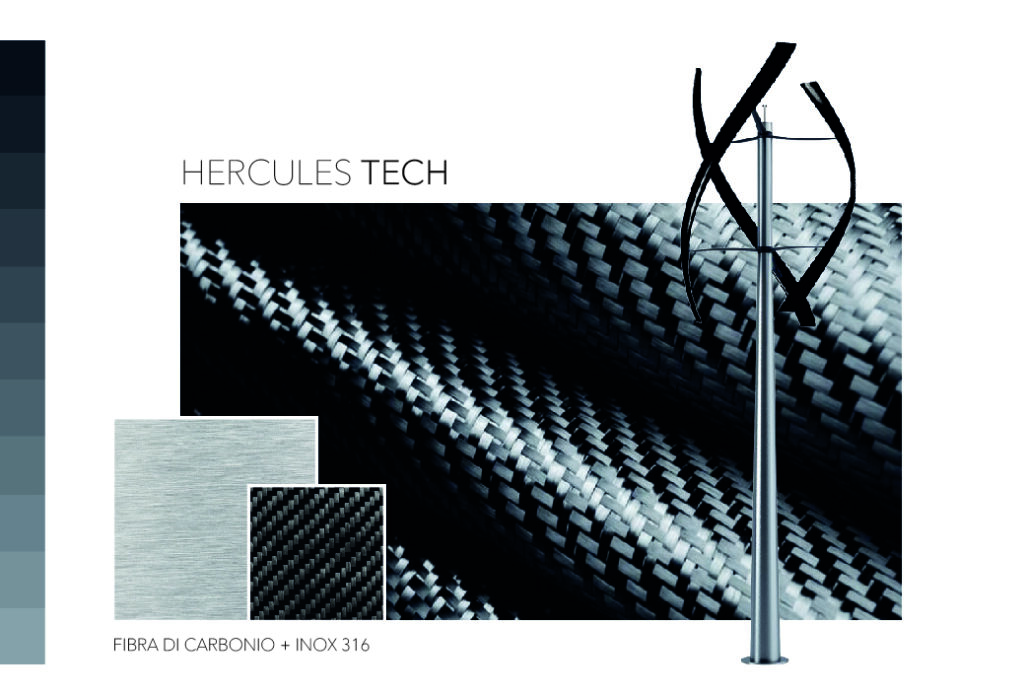

Hercules Tech Wind Turbine is the most aggressive style emblem within the ENESSERE constellation. This variant of the Hercules model boldly combines stainless steel and carbon fibre.

The exposed carbon fibre sails not only ensure a lightweight structure, but they also give a stunningly aerodynamic look.

Furthermore, the Hercules Tech Wind Turbine tower is made of stainless steel, ensuring exceptional resistance to atmospheric events, and making it perfect for installations in coastal locations.

€ 77.000,00 + VAT

VARIATIONS
Hercules Natural Wind Turbine

MORE MODELS
Pegasus Wind Turbine

General Information
AxisVertical
Total Height8,85 m
Tower Height6,00 m
RotorWidth2,67 m
Wing Height3,76 m
Total Weight660 kg
Wing Structure MaterialCarbon Fiber
Wing Covering MaterialTransparent Varnish
Tower MaterialStainless Steel 316
Spokes MaterialCarbon Fiber

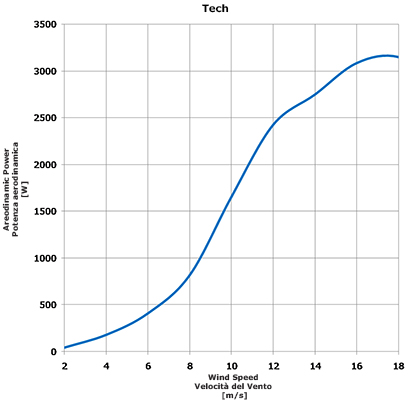

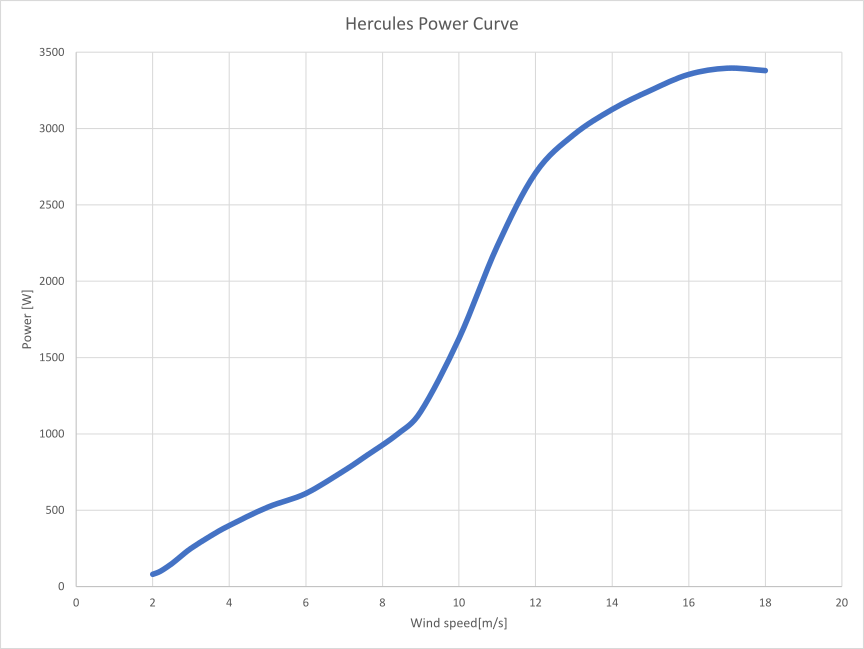

Max Aerodynamic Power4 kW
Cut-in Wind Speed8 knots (~4,0 m/s)
Project Wind Speed48 knots (~25,0 m/s)
RPMMax 200 RPM
Survival Wind Speed76 knots (~39,0 m/s)
Annual Energy to 6 m/s~5000 kWh
Noise Level at 60 m38 dBA
Type of GeneratorMagnetic Three-Phase Permanent, Exterior Rotor
Operating temperature-15°C a 40°C (-5°F a 104°F)
Connection TypeDirect Connection
Inverter Data
Rated Output Power4800 VA
Operating Rangefrom 380 to 780 Vdc
AC Nominal Voltage400 Vrms (50÷60 Hz)
Power Factor on Line0,95
Degree of Environmental ProtectionIP20



ENESSERE HERCULES TECH
Wind Turbine
Cod NSRHT-01
WING STRUCTURESAILS in exposed carbon fiber
Anti-UV painting
SPOKES in exposed carbon fiber
ROTORRotor with custom-made 20-pole alternator
Mechanical brake housing with Brembo system
Housing of turbine status control sensors
TOWERStainless Steel 316
Electropolishing
INVERTERCleanverter 15 TL
Inverter certified CEI 0-21
Power management software from
macro-wind

Dimensions 1,7×1,02×0,72 m
CONTROL PANELDouble braking system, mechanical and electromagnetic
Programmable Logic Controller (PLC) and Sensors:
Spinning sensor
Wind sensor
Vibration sensor
Temperature sensors of the generator, inverter and electrical panel
Remote control via app
SERVICESComplete Installation
Electrical wiring and commissioning with 3 operators
DURATION OF THE INTERVENTION: 02 Working Days for each single wind turbine
Remote assistance
OPTIONAL | NOT INCLUDEDBase plinth
Transport
Network connection paperwork

The wind turbine has obtained the following certifications and complies with the following directives:

  • CE marking
  • EN 61400-2 “Wind turbines – Part 2: Design requirements for small wind turbines”
  • EN 12100-1:2010 “Safety of machinery – General design principles – Risk assessment and risk reduction”
  • Community Directive 2014/35/EU on low voltage electrical equipment
  • Community Directive 2014/30/EU on electromagnetic compatibility

The electrical panel has the following certifications and complies with the following directives:

  • CE marking
  • CEI 0-21 “Reference technical rule for the connection of active and passive users to the LV networks of electricity distribution companies”
  • EN 61000-2-2 “Electromagnetic compatibility – Part 2: Environment – Section 2: Compatibility levels for low-frequency conducted disturbances and signal transmission on public low voltage supply systems”
  • EN 61000-3-11 “Electromagnetic compatibility (EMC) — Part 3: Limits — Section 11: Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage power systems for equipment with rated currents <= 75 A and subject to connection according to IEC 61000-3-11:2000 conditions”
  • EN 61000-3-12 “Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for harmonic currents produced by equipment connected to public low-voltage systems with input currents > 16 A and <= 75 A per phase IEC 61000-3-12:2011 IEC 61000-3-12:2011/IS1:2012”
  • EN 61000-6-1 “Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity standard for residential, commercial and light-industrial environments”
  • EN 61000-6-3 “Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emissions for residential, commercial and light-industrial environments”
  • EN 62109-1 “Safety of power converters for use in photovoltaic power systems – Part 1: General requirements”
  • EN 62109-2 “Safety of power converters for use in photovoltaic power systems – Part 2: Particular requirements for inverters”
  • G59-3

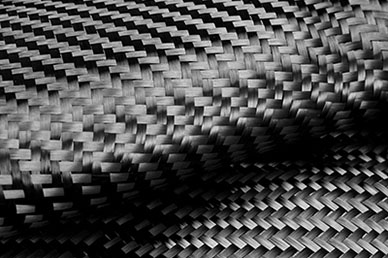

CARBON FIBER

The carbon fibre – thanks to the extraordinary combination of strength and lightness – is the perfect material for ENESSERE wind turbine blades. This combination optimises efficiency in capturing the wind, reducing the overall weight of the turbine. With carbon fibre, ENESSERE wind blades are light, efficient and durable, contributing to their functionality.

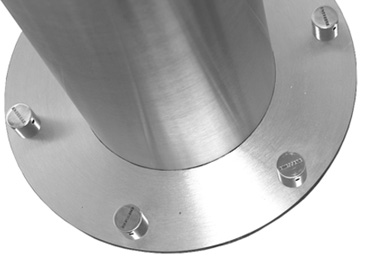

STAINLESS STEEL 316

The use of stainless steel for the Hercules Wind Turbine tower is a decision that extends beyond corrosion resistance. This high-quality material is virtually immune to rust, ensuring exceptional durability, particularly in coastal environments where the salinity of the air could present a challenge to other metal alloys. In these locations, where wind production is often optimal, stainless steel becomes the ideal partner, ensuring the reliable and long-lasting operation of ENESSERE wind turbines.
