Installation Stages of Hercules & Pegasus

The installation of vertical small wind systems is normally subject to fast and simplified authorisation procedures to be submitted to the Municipality where the installation site is located.
The procedure may become more complex only in areas subject to specific planning or environmental restrictions.

1.

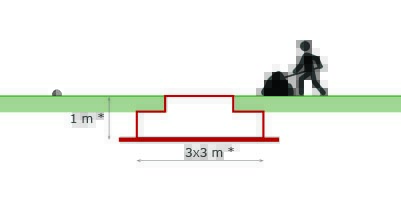

Foundation Construction

2.

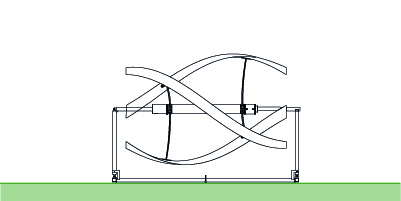

Assembly of Arms and Blades on the Support Frame

3.

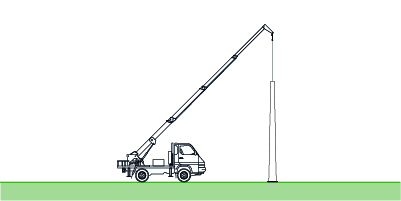

Tower Installation

4.

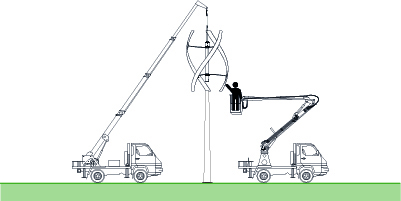

Rotor Installation on the Tower

5.

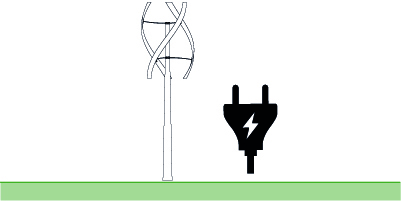

Electrical Connections

6.

Testing and Commissioning

Lifting Equipment

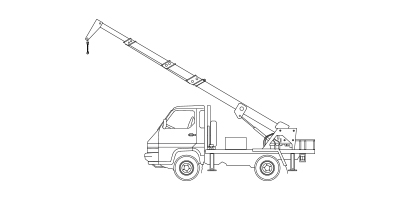

Mobile Crane

  • Capacity: 6–11 t with a minimum 15 m outreach

  • Lifting capacity at 15 m height, measured between the tower base connection point and the crane stabilisation level

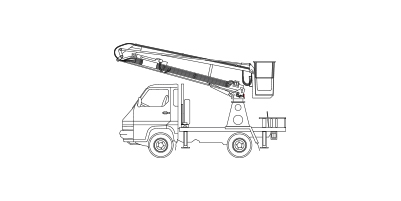

Mobile elevating work platform (MEWP)

  • Minimum basket size 1,40×0,70 m
  • Working height 16 ÷ 23 m

Maintenance

After 1 year

  • Technicians: 2
  • Duration: 8 hours
  • Equipment: MEWP

After 3 years

  • Technicians: 2
  • Duration: 16 hours
  • Equipment: MEWP

After 27.000 Operating Hours

  • Technicians: 2
  • Duration: 24 hours
  • Equipment: Mobile Crane + MEWP

Foundation Types

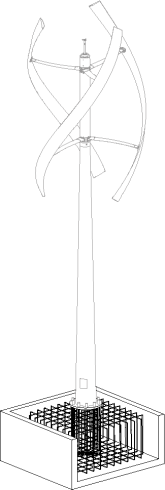

Standard Foundation

Permanent reinforced concrete foundation with steel reinforcement cage.

Dimensions

Indicative dimensions (depending on the project)
3.0 × 3.0 × 1.0 m

Installation

Standard permanent installation. A minimum curing period of 30 days is required between concrete casting and turbine installation.

Engineering Design

The engineering design, according to the regulations applicable at the installation site and the ground conditions, may be carried out either by ENESSERE or by another engineer or design consultant appointed by the Purchaser.

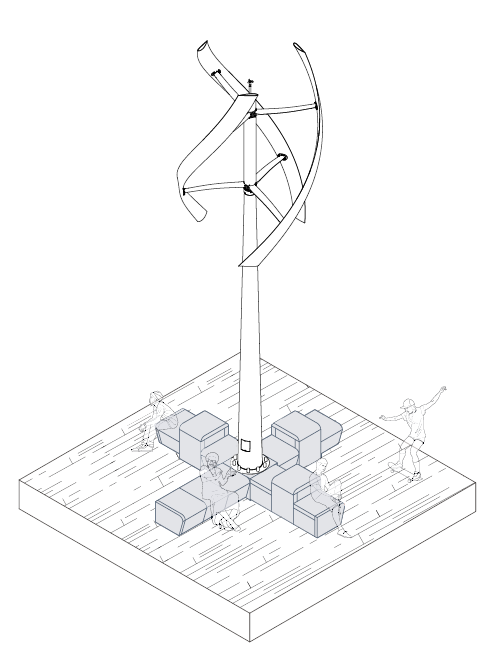

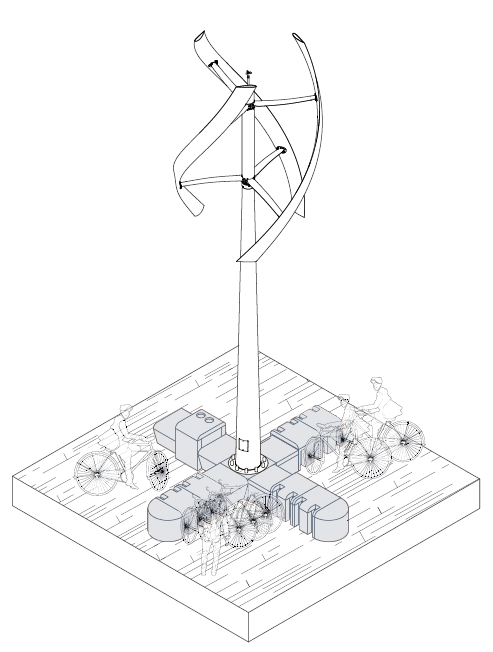

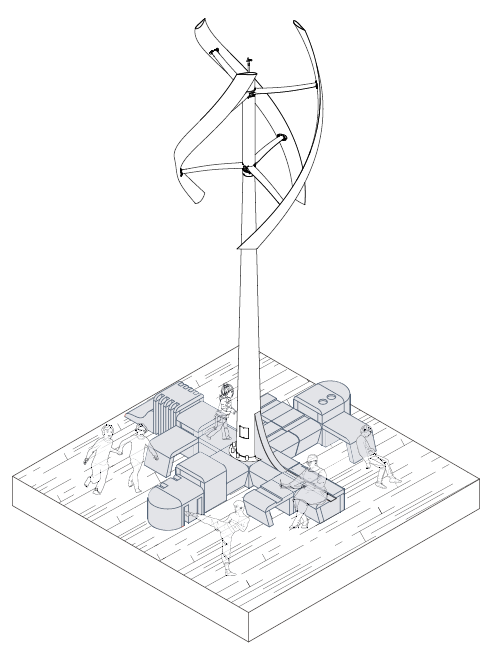

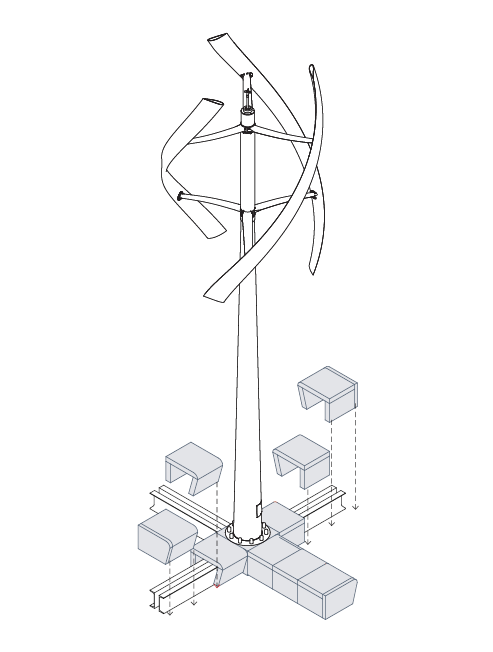

Customisable Modular Base

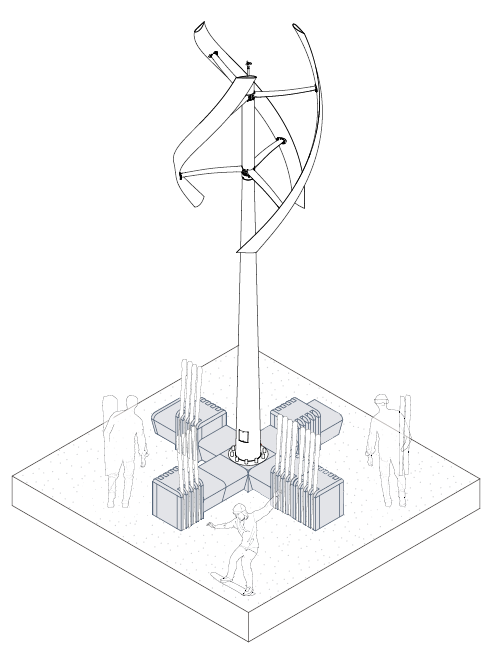

Customisable modular base for urban furniture applications.
Developed in collaboration with:

Our new modular base, developed together with Margraf S.p.A., is the ideal solution for those looking for an innovative and elegant way to enhance outdoor spaces without the need for permanent foundations.

Learn More

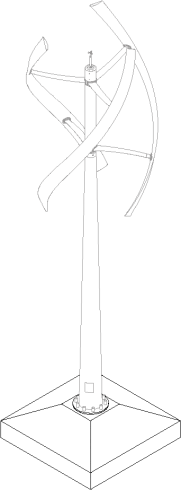

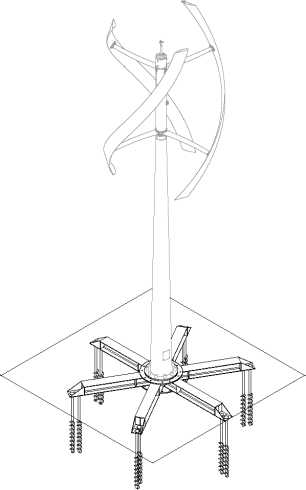

Removable Foundation

Removable foundation with steel base anchored to the ground using 1 metre ground screws.

Dimensions

Indicative dimensions (depending on the project)
4.0×4.0 m

Installation

Removable installation using 1 metre ground anchor screws.

Engineering Design

The engineering design, according to the regulations applicable at the installation site and the ground conditions, may be carried out either by ENESSERE or by another engineer or design consultant appointed by the Purchaser.

Compliance with Standards and Directives

The wind turbine has obtained the following certifications and complies with the following standards and directives:

  • CE Certification
  • EN 61400-2 – Wind Turbines – Part 2: Design Requirements for Small Wind Turbines
  • EN 12100:2010 – Safety of Machinery – General Principles for Design – Risk Assessment and Risk Reduction
  • Low Voltage Directive 2014/35/EU
  • Electromagnetic Compatibility Directive 2014/30/EU

The electrical control panel has obtained the following certifications and complies with the following standards and directives:

  • CE certification
  • CEI 0-21 “Technical regulation reference for the connection of active and passive users to the LV networks of electricity distribution companies”
  • EN 61000-2-2 “Electromagnetic compatibility – Part 2: Environment – Section 2: Compatibility levels for low frequency conducted disturbances and signaling in public low voltage power supply networks”
  • EN 61000-3-11 “Electromagnetic compatibility (EMC) – Part 3: Limits – Section 11: Limitation of voltage changes, voltage fluctuations and flicker in public low voltage power supply systems for equipment with rated currents <= 75 A and connected to condition IEC 61000-3-11:2000”
  • EN 61000-3-12 “Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for harmonic currents produced by equipment connected to the public low-voltage network with input currents > 16 A and <= 75 A per phase IEC 61000-3-12:2011 IEC 61000-3-12:2011/IS1:2012”
  • EN 61000-6-1 “Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity for residential, commercial and light industry environments”
  • EN 61000-6-3 “Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emission for residential, commercial and light industrial environments”
  • EN 62109-1 “Safety of power converters for use in photovoltaic power systems – Part 1: General requirements”
  • EN 62109-2 “Safety of power converters for use in photovoltaic power systems – Part 2: Particular requirements for inverters”
  • G59-3

Tax Benefits

Private

Any private customer purchasing our vertical axis mini wind turbine can have a 50% tax deduction of the expenditure within a limit of € 96.000 (VAT included) in 10 years.

For instance, with a € 60.000 expenditure, € 30.000 are deductible, that is € 3.000 each year for 10 years. Everything can be indicated in the tax declaration or in the 730 model (individual tax return), as long as the payment is only done via bank transfer. Such a deduction is allowed on the basis of art. 16-bis letter h) of the TUIR (Consolidated Text of the Laws on Income Tax), as its contemplated in case of energy-saving works.

Company

For a company the purchase price of the wind turbine is ordinarily annually deductible from the business income, with the amortisation procedure. Moreover, the cost is further deductible via the “super amortisation” that allows a further 30% deduction of the cost, related only to the components of the wind turbine.

That’s why the company, depending on the installed wind turbine, will estimate the components with the aim of correctly calculating the precise amount of the incremental tax deduction.
