INTEGRATED SUN AND WIND SOLUTION
CARSYLUM SHELTERS
ENESSERE presents a range of intelligent photovoltaic shelters, designed to offer modular and highly customised solutions for high-level landscape contexts.
The Carsylum shelters are suitable for both residential uses and broader urban redevelopment interventions.

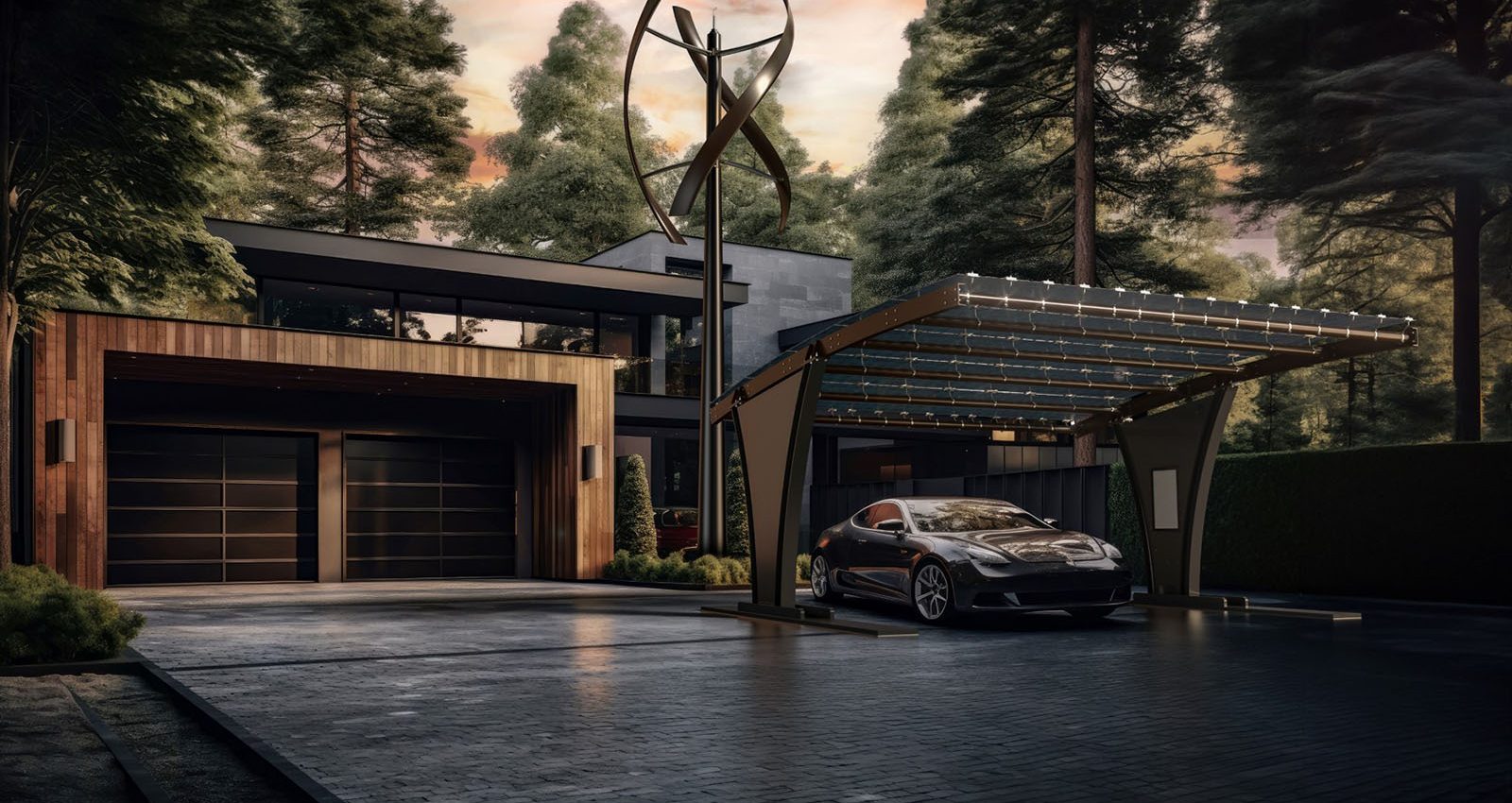

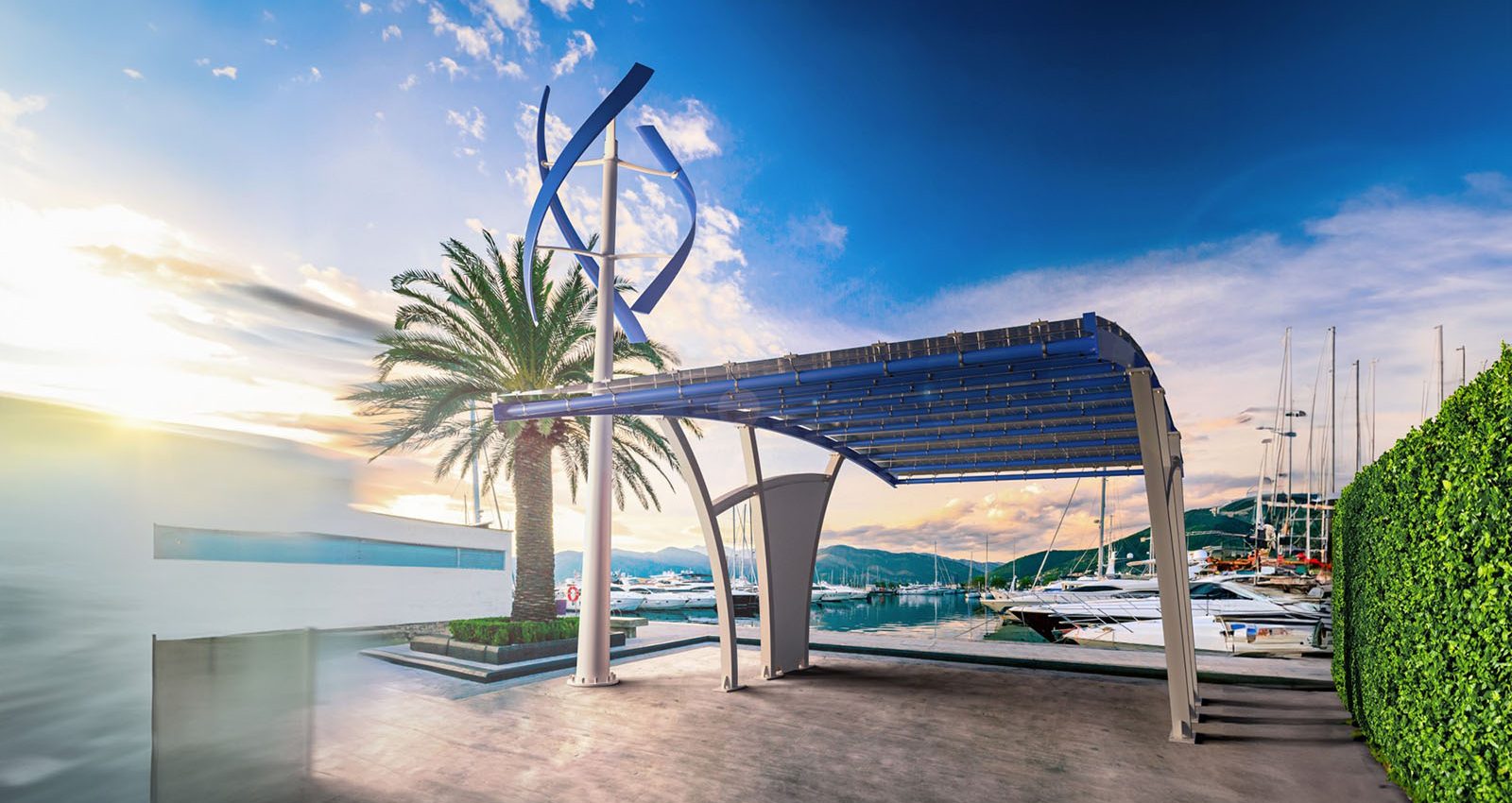

The combination of ENESSERE micro wind turbines and Carsylum shelters offers an integrated sun and wind solution of high aesthetic and technological value.

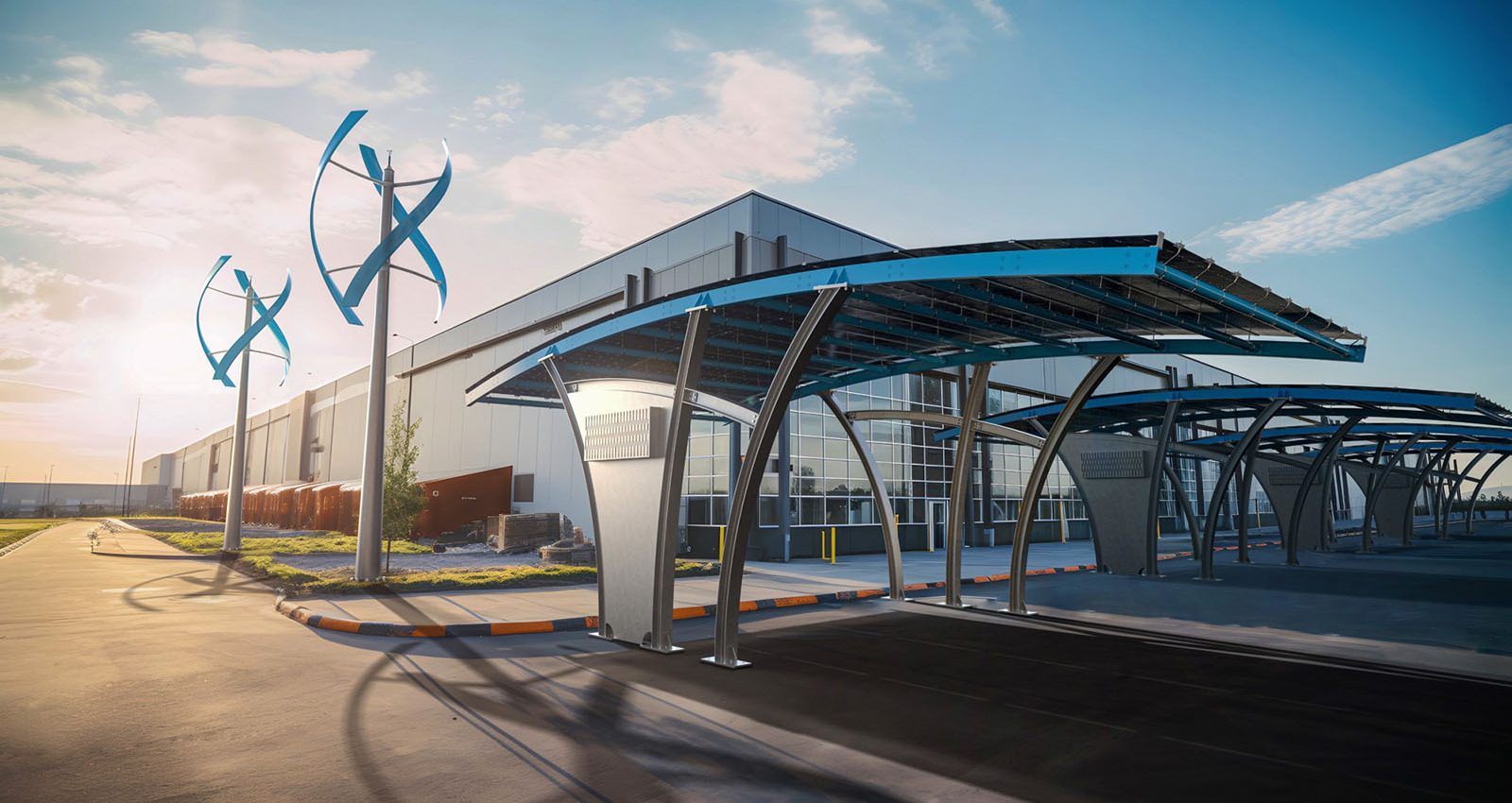

Carsylum shelters are ideal for latest generation car parks, ensuring an optimal integration with charging infrastructures intended for electric vehicles in both private and public settings.
The combination of ENESSERE wind turbines and Carsylum shelters is perfect for the redevelopment of urban and extra-urban contexts with a view to the ongoing energy transformation.
The Carsylum shelters, thanks to their distinctive design characterised by a curved roof and the optimization of the photovoltaic strings, do not require a specific orientation towards the south. This allows the performance of the integrated generation system to be maximised, regardless of the orientation of the installation, making the most of the bifacial characteristics of the photovoltaic panels that compose them.
The models are extremely versatile and can be customised to adapt to the context in which they are installed, thanks to the colour and style studies provided by ENESSERE.
CARSYLUM-2 MODEL
CARSYLUM-4 MODEL
Model | Technical data | |||||
---|---|---|---|---|---|---|
CARSYLUM-2 | Nr of shelters in line | Parking spaces | PV power | Roof height | Dimensions (LXD) | Metal structure weight |
1 | 2 | 5,70kWp | MIN 2,2mt - MAX 3mt | 5,3mt X 5,3mt each shelter | 1100 Kg (average 950 Kg on several blocks) per shelter | |
2 | 4 | 11,40kWp | ||||
5 | 10 | 28,50kWp | ||||
CARSYLUM-4 | Nr of shelters in line | Parking spaces | PV power | Roof height | Dimensions (LXD) | Metal structure weight |
1 | 2 | 11,40kWp | MIN 2,76mt - MAX 3,32mt | 5,3mt X 10,6mt each shelter | 2300 Kg (average 1150 Kg on several blocks) per shelter | |
2 | 4 | 22,80kWp | ||||
5 | 10 | 57,00kWp | ||||
Common features | ||||||
Installation: ON GRID - OFF GRID - HYBRID | Bifacial photovoltaic modules that can be integrated glass-glass (standard): BPDMJ60H(S)-380Wp | |||||
Roof exposure: Curved | Recommended exposure: Any | |||||
Material: Galvanized (or Painted) Steel | Column covering: Steel sheets | |||||
Access to internal components: On the ground (inside an enclosure) | Main reference standards: CEI EN 61730-1, 62109-2, 60598-2-3 - UNI EN 1090-1 - 2006/95/CE - 2004/108/CE - UNI EN ISO 20607:2019 - UNI 10893:200 - UNI 10653:2003 |
Model | Configuration (excl. VAT) | ||||
---|---|---|---|---|---|
CARSYLUM-2 | Nr of shelters in line | Parking spaces | Basic | Medium | Top |
1 | 2 | 24.500,00 € | 28.900,00 € | 45.600,00 € | |
2 | 4 | 38.000,00 € | 44.000,00 € | 61.000,00 € | |
5 | 10 | 83.000,00 € | 94.000,00 € | 111.500,00 € | |
CARSYLUM-4 | Nr of shelters in line | Parking spaces | Basic | Medium | Top |
1 | 2 | 35.600,00 € | 41.000,00 € | 59.500,00 € | |
2 | 4 | 57.000,00 € | 64.400,00 € | 83.400,00 € | |
5 | 10 | 126.000,00 € | 140.000,00 € | 160.000,00 € | |
Basic includes | Medium includes | Top includes | |||
Galvanized structure 1x column cover PV system Lighting Installation DL Design | Basic configuration + Video surveillance 2x cameras + Custom paintwork configuration | Medium configuration + 2 EV wallboxes + 10kW battery + Air monitoring | |||
Exclusions | |||||
Grid connection and permitting practices | |||||
Creation and supply of foundation materials | |||||
Transport to destination |
THE PHOTOVOLTAIC SHELTERS CAN BE INTEGRATED WITH OUR MICRO WIND TURBINE SYSTEMS
DISCOVER OUR MODELS
WOULD YOU LIKE TO KNOW MORE?
Contact us and ask for information.
